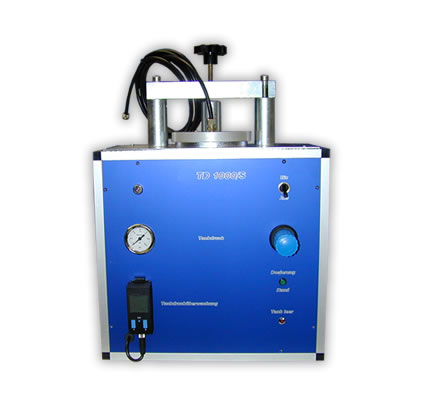

Robust and reliable tank reservoir system with a 6bar pressure tank.

The pressure tank is designed to hold containers up to a content of one liter.

The system is equipped with a fill level sensor which reports if the material in the tank falls below a defined level height.

Thus, a continuous dispensing mode is ensured without unplanned interruptions.

The tank pressure is also monitored by the device and a fluctuating pressure of the tank is immediately signalled.

The control of different dispensing valves can be integrated into the tank system.

Thus, no additional control in the workplace are needed.

Double tank system with two 6bar pressure vessels.

Ideal for dispensing of 2-component materials, which are dosed in the 50/50 ratio with a static mixing nozzle.

The pressure vessels are each designed to accommodate containers up to half a liter.

The necessary pressure of each pressure vessel can be separately set.

An integrated timer controls the pulse duration of the attached dispensing valve. Optional fill level sensors and tank pressure sensors can be integrated.

Different dispensing valves can be controlled by the tank system.

Double tank system with two 6bar pressure vessels.

Ideal for dispensing of 2-component materials, which are dosed in the 50/50 ratio with a static mixing nozzle.

The pressure vessels are each designed to accommodate containers up to one liter.

The necessary pressure of each pressure vessel can be separately set.

An integrated timer controls the pulse duration of the attached dispensing valve.

Optional fill level sensors and tank pressure sensors can be integrated.

Different dispensing valves can be controlled by the tank system.

Double tank system with two 6bar pressure vessels.

Ideal for dispensing of 2-component materials, which are dosed in the 50/50 ratio with a static mixing nozzle.

The pressure vessels are each designed to accommodate containers up to six liters.

The necessary pressure of each pressure vessel can be separately set.

An integrated timer controls the pulse duration of the attached dispensing valve.

Optional fill level sensors and tank pressure sensors can be integrated.

Different dispensing valves can be controlled by the tank system.
